LightGUARD®

By simply reversing conventional design and placing the insulation above the membrane rather than below, the cause of many life shortening roofing problems can be eliminated.  This unconventional arrangement of roofing material – roof deck, roof membrane, LightGUARD or HeavyGUARD ballasted roof insulation panels – is commonly referred to as the “upside-down” roof system or Protected Membrane Roofing (PMR) system.

Primary Benefits

• Protect the roof membrane from foot traffic, UV degradation, hail, wind damage, vandalism, thermal cycling and physical abuse
• Protect the membrane of your choice
• Easy removal and reinstallation of ballast and insulation
• Reusable and recyclable
• Reduce yearly membrane maintenance costs
• Provide additional durability for roofs with high-maintenance traffic
• Provide for predictable long-term performance
• Provide for energy savings and a greater life-cycle value

HeavyGUARD®

By simply reversing conventional design and placing the insulation above the membrane rather than below, the cause of many life shortening roofing problems can be eliminated.  This unconventional arrangement of roofing material – roof deck, roof membrane, LightGUARD or HeavyGUARD ballasted roof insulation panels – is commonly referred to as the “upside-down” roof system or Protected Membrane Roofing (PMR) system.

Primary Benefits

• Protect the roof membrane from foot traffic, UV degradation, hail, wind damage, vandalism, thermal cycling and physical abuse
• Protect the membrane of your choice
• Easy removal and reinstallation of ballast and insulation
• Reusable and recyclable
• Reduce yearly membrane maintenance costs
• Provide additional durability for roofs with high-maintenance traffic
• Provide for predictable long-term performance
• Provide for energy savings and a greater life-cycle value

ProGUARD®

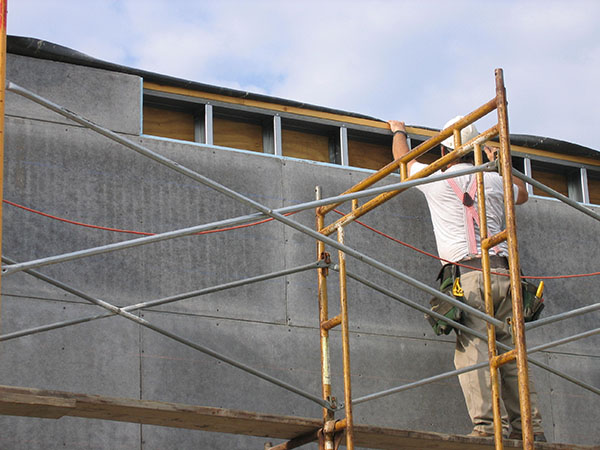

ProGUARD®*Concrete Insulated Sheathing wall panels consist of a lightweight, impact-resistant concrete sheet laminated to a continuous layer of rigid insulation providing a wall system that installs faster than conventional building techniques.

Primary Benefits

• No additional moisture wrap required depending on local codes
• Cuts with carbide-tipped circular saw
• No “itchy” fiberglass particles on workers
• Can be exposed to weather prior to applying finish coating
• Ready to receive finishes the same day of installation
• R-6.45 up to R-20 available as standard items
• Synthetic stucco, stone, brick and other siding products can be directly applied to the ProGUARD® cement board exterior which has fastener full through of greater than 195lbs and a bond strength of greater than 50lbs.
• Warranties available
• Installs easily and quickly

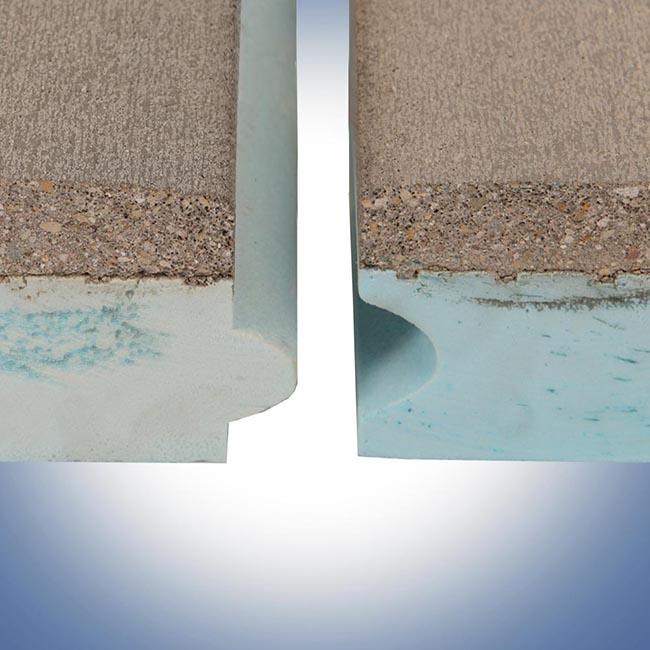

• Ship lapped edges prevent thermal breaks on studs
• Insulation is on the outside of the steel studs, concrete walls or structural wood studs eliminating thermal shorts and providing continuous insulation

WallGUARD®

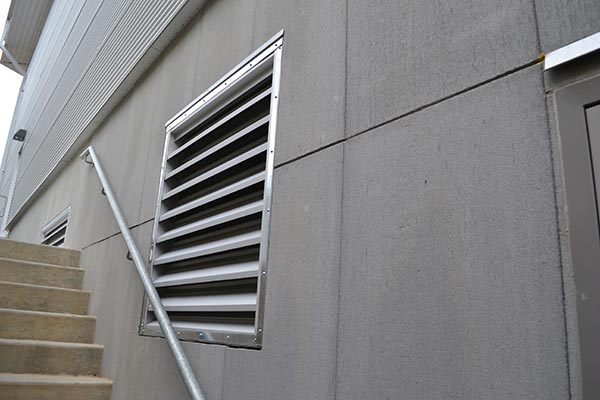

WallGUARD® insulates and protects areas from just below grade to where your heat lost begins around the exposed area of your building foundation.  Around the slab edge or rim joist is an area that can account for 10% or more of your total heat loss.  WallGUARD stops that heat loss and provides a durable latex modified concrete finish that can stand up to accidental impact. WallGUARD comes standard in a gray concrete broom finish, but can be coated on-site to provide a color or texture match to your exterior design features.

Primary Benefits

• Provide finish and insulation in one easy step, reducing installation costs
• Can be installed in most weather conditions, allowing year-round construction
• Can be used in retrofit or new applications
• Can be applied over masonry block or cast in place concrete
• Protect perimeters from freeze-thaw cycling, extending lifecycle of masonry structures
• Can be applied above or below grade
• Hidden clip system and fasteners included

ThermaDRY®

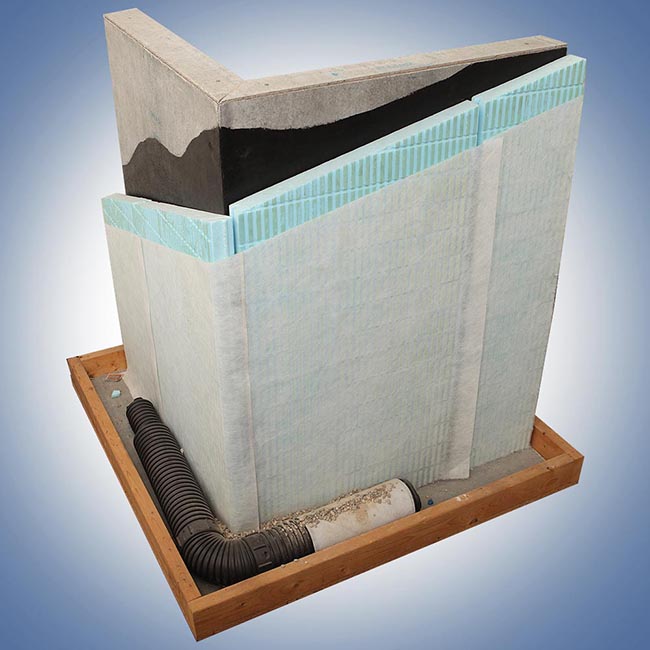

When you need to insulate and protect foundations, T. Clear’s ThermaDRY® Insulating Drainage Panels are the right choice.  ThermaDRY panels can also be used for Plaza Decks where pavers or poured concrete can be installed directly on the panels eliminating the need for a costly conventional pedestal system.

Primary Benefits

• Protect against freeze-thaw cycling of foundation
• Protect foundation, waterproofing during backfill
• Provide high drainage rates
• Provide predictable long-term insulation value
• Limit compressive creep deformation to less than 5% over 20 years
• Protect foundation against soil-water hydrostatic pressures

ProTEC®C-SIP

The T. Clear ProTEC® C-SIP (Concrete Structural Insulated Panel) System provides a well-engineered alternative to conventional lumber framing systems for residential and light commercial structures.

Strong Framing Systems, Easy to Construct

Residential and light commercial buildings constructed with ProTEC® C-SIP Systems are strong and tight. They are energy efficient, resistant to mold and mildew, and environmentally sound. They are, simply, built to last.

Walls go up in a fraction of the time. Using simple tools, a small crew can typically erect the walls in significantly less time than it takes for conventional framing. Because of the Util-A-Crete® facings, time and materials are saved when finishing both the interior and exterior surfaces. ProTEC® Panels come standard with pre-cut electrical chases to help speed the wiring operation. This means fewer delays, resulting in a quicker overall construction cycle.
