CI® SYSTEM RAINSCREEN ATTACHMENT


Continuous Insulation Should Be Simple to Design + Easy to Install. Attach Virtually Any Cladding or Finish Over Code Compliant Continuous Insulation.

  • Vertical CI-Girt® can be spaced 16″, 24″ or 32” O.C. (every other stud)*
  • Support cladding weighing up to 20 PSF*, unlike many other attachments
  • Real labor savings – no notching or cutting of exterior rigid board insulation required like with Z-girts, brackets or clips
  • Thermally isolated fasteners with specially designed ThermaStop washers come preassembled
  • Highly corrosive-resistant Zn-Al-Mg ZM40 (ASTM A1046) coated steel provides a long service life vs. typical G90 Galvanized steel
  • Black PVDF finish or stainless steel options available, competitively priced
  • Easily installed over any type of substrate – steels studs, wood studs, CMU, concrete, even brick
  • Engineering calculations provide design load compliance for each specific project
  • Attach nearly any type of cladding – supplied by any manufacturer – with easy and efficient detailing and installation
  • Use of any manufacturer’s insulation meeting minimum compressive strength and other code requirements
  • Attach cladding directly to vertical CI-Girt or add optional KWS horizontal rails (such as PanelRail)
  • Excellent ventilation with a 3/4-inch minimum continuous rainscreen cavity
  • Pre-engineered and 3rd party tested for proven performance, reliability and durability
  • Competitive, budget conscious assembly that meets ASHRAE 90.1 standard
  • Complete, drop-in rainscreen attachment system – girts, thermally isolated fasteners, rails and engineering – one source liability for the whole system
  • Limited labor and material warranty

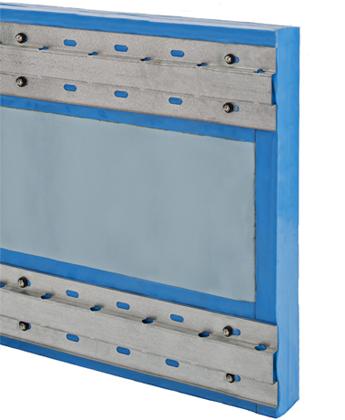

HCI SYSTEM RAINSCREEN ATTACHMENT


Horizontal-Girt Continuous Insulation Attachment Should Be Simple to Design + Easy to Install

  • Horizontal HCI-Girt™ can be spaced up to 36 inches O.C.*
  • Support cladding weighing up to 9 PSF*, covering many popular cladding types
  • Real labor savings – no notching or cutting of exterior rigid board insulation like with Z-girts, brackets or clips
  • Thermally isolated wall anchors with specially designed ThermaStop™ washers come preassembled
  • Highly corrosive-resistant Zn-Al-Mg ZM40 (ASTM A1046) coated steel provides a long service life vs. typical G90 Galvanized steel
  • Black PVDF finish or stainless steel options available, competitively priced
  • Easily installed over any type of substrate – steel studs, wood studs, CMU, concrete, even brick
  • Engineering calculations provide design load compliance for each specific project
  • Attach nearly any type of cladding – supplied by any manufacturer – with easy and efficient detailing and installation
  • Use any manufacturers insulation meeting minimum compressive strength and other code requirements
  • Cladding can be attached directly to the horizontal HCI-Girt or used with optional vertical rails (such as PanelRail™ or RevealRail™)
  • Excellent ventilation with a 3/4-inch minimum continuous rainscreen cavity
  • Pre-engineered and 3rd party tested for proven performance and durability
  • Competitive, budget conscious assembly that meets ASHRAE 90.1 standard
  • Complete, drop-in rainscreen attachment system – girts, thermally isolated fasteners, rails and engineering – one source liability for the whole system
  • Limited labor and material warranty

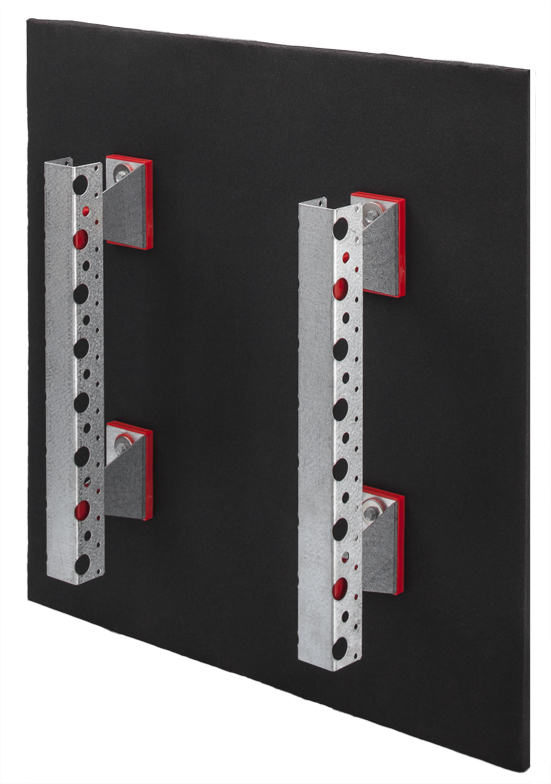

MFI® SYSTEM RAINSCREEN ATTACHMENT


BETTER INSULATION EFFICIENCY OVER ANY OTHER BRACKET SYSTEM OR FURRING CHANNELS ON THE MARKET!

  • Rails may be attached to ThermaBracket™ in a vertical or horizontal orientation
  • High corrosive-resistant Zn-Al-Mg ZM40 coating for a long service life vs. typical G90 Galvanized steel
  • ThermaStop™ assembly arrives onsite attached to ThermaBracket – No pre-assembly required
  • Exterior insulation fits tight around ThermaBrackets without trimming
  • Attach nearly any cladding with easy and efficient installation and detailing
  • Minimal thermal bridging
  • Accommodates up to 6″ of outboard insulation
  • Faster installation: Built-in adjustability easily plumbs old and new walls equating to labor cost-savings
  • Pre-engineered and tested (substrate connection detailed per project)
  • Ideal for renovations
  • Extremely cost competitive compared to typical means of exterior insulation


THERMASTOP THERMAL ISOLATION


ThermaStop™: A Revolution in Thermal Isolation for Rainscreens.

Introducing ThermaStop™ (patent pending), our thermal isolation systems used on the MFI® System and CI® System rainscreen attachment assemblies.

When it comes to the modern day building envelope, the goal is to increase how well, or effective, the added exterior insulation performs. The manner in which exterior insulation has been typically added to wall assemblies decreases the valuable insulations thermal performance by as much as 50%. 3D thermal models indicate that the use of ThermaStop in rainscreen construction delivers increased insulation effectiveness, on an average of 87-98 percent, far above that of conventional aluminum-brackets and continuous furring strips. And the more insulation that’s used, the isolator does not allow for additional loss in effectiveness percentage as has been the case in past typical assemblies.

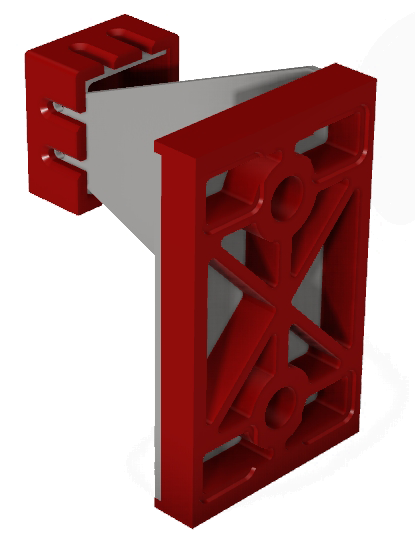

The MFI System is a four-piece system constructed of Zinc-Aluminum-Magnesium coated steel brackets (not Galvanized) with a highly durable polyoxymethylene plastic base and integral 1/8-inch plastic washer. ThermaStop reduces the contact between the wall and the rainscreen bracket, with only a ribbed area of the isolator’s base touching the wall substrate, significantly reducing thermal bridging at that point of contact, a particular area of the building envelope that can potentially contribute to heat loss and gain. An 1/8-inch plastic cap isolates the stem of the wall bracket from the rail as well to further decrease any thermal transfer from the bracket to the rail. There is no metal-on-metal contact, which is the key to its effectiveness. All metal fasteners are isolated and heat transfer is significantly reduced. Most importantly no assembly is required, the brackets arrive on site with the entire ThermaStop assembly attached.

In short, Knight’s ThermaStop takes up a smaller footprint than the more common aluminum rainscreen wall brackets, Knight’s rainscreen brackets have less cross sectional area of metal penetrating the insulation, there is no metal-on-metal contact and steel does not conduct heat nearly as well as aluminum, all lending to the rainscreen’s increased thermal performance.

With the CI System rainscreen attachment, the isolator is used to isolate the fastener from the girt placed on the exterior side of the exterior rigid board insulation. Being that the fasteners are the only item penetrating the insulation, isolating these help reduce their thermal transfer to the exterior CI-Girt®, therefore increasing the thermal performance of the entire wall assembly.
